TL;DR

1. Mount CA Certificates in Windmill

   • Ensure CA certificate is base64 encoded and has .crt extension.
   • Create a directory for CA certificates.
   • Modify docker-compose.yml to mount this directory to /usr/local/share/ca-certificates in read-only mode.
   • Use INIT_SCRIPT environment variable to run update-ca-certificates in worker containers.

2. Establish Deno’s Trust

   • Set environment variable DENO_TLS_CA_STORE=system,mozilla in docker-compose.yml for Windmill workers.

3. Configure Python (requests) Trust

   • Set REQUESTS_CA_BUNDLE=/etc/ssl/certs/ca-certificates.crt in the worker’s environment variables.
   • Add WHITELIST_ENVS=REQUESTS_CA_BUNDLE to explicitly allow this variable in Windmill workers.

Introduction

Windmill is awesome. It allows you to create internal tools and workflows rapidly. But when working on internal tools in Windmill, you’ve probably come across these errors when trying to reach internal endpoints at least once or twice.

The reason for this is Windmill, and the runtimes bundled with its workers, trust the CA Mozilla bundle by default. Often, you might need a script to reach a service internally that is using TLS, but the certificates it uses are signed by some internal CA, or other CA that is just not included in Mozilla’s CA bundle. You might have these CA certificates trusted on the server running Windmill containers, but we actually need to get these containers (and runtimes) to trust the certificates themselves.

I will take you through a solution to this problem which avoids disabling SSL verification. We will focus on making sure it works with at least Deno, Go, PowerShell, and Python (requests).

Getting your CA certificates inside of Windmill

The first thing we need to do is expose our CA certificates to the workers which run our scripts. We must know a few things before doing this:

• What distribution is the worker image built upon?
  • The Windmill image which is used for worker containers is built upon Debian.
  • You can see this for yourself looking at its Dockerfile
• How do we get this distribution to trust a user-specified CA certificate?
  • In Debian, we use ca-certificates and its tool update-ca-certificates

Knowing this information, we now know we need to:

1. Mount our CA cert inside of /usr/local/share/ca-certificates
2. Run update-ca-certificates when these worker containers are created

Mounting our CA certificate

Prerequisites:

• Have your CA certificate copied onto the machine running Windmill
• Ensure your CA certificate is base64 encoded
• Ensure your CA certificate ends with a .crt extension

1. Create a directory that will hold your CA certificates that you wish to expose to Windmill
2. Add a line to the windmill_worker service in your docker-compose.yml file to mount this new directory
   • Here we mount a directory named ca to /usr/local/share/ca-certificates
   • We also make this volume read-only as there is no reason for the worker to ever modify this
3. Leverage the INIT_SCRIPT env variable to run update-ca-certificates when worker containers come up

  windmill_worker:
    image: ${WM_IMAGE}
    # ...
    # ...
    environment:
      - DATABASE_URL=${DATABASE_URL}
      - MODE=worker
      - WORKER_GROUP=default
      - INIT_SCRIPT=update-ca-certificates
    volumes:
      - /var/run/docker.sock:/var/run/docker.sock
      - worker_dependency_cache:/tmp/windmill/cache
      - ./ca:/usr/local/share/ca-certificates:ro # Our new line!

NOTE: You could technically mount the single file cert bundle from the container host instead (if you know where it is as it varies from distros), avoiding the need to perform update-ca-certificates. However, this requires you to trust the CA certificate on the container host itself.

First Test

Now that we have our CA certificates in place let’s test functionality. Our test will be trying to hit a TLS protected API https://api.local that was signed with an internal CA in my lab.

Scripts used for testing

Deno & Python

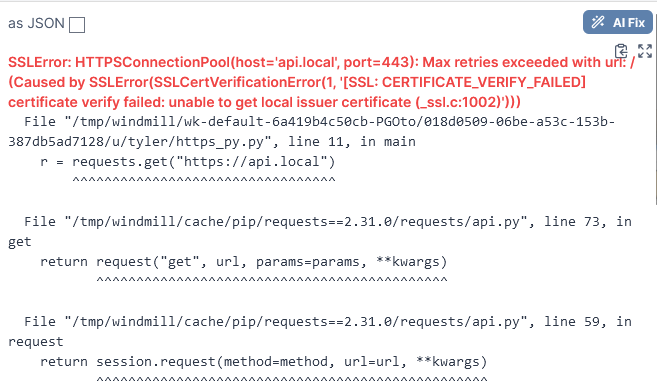

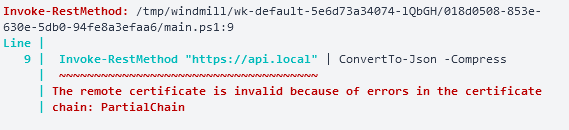

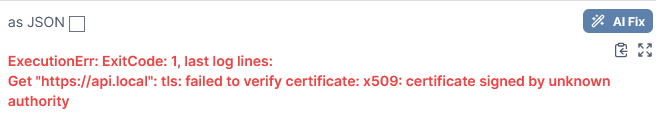

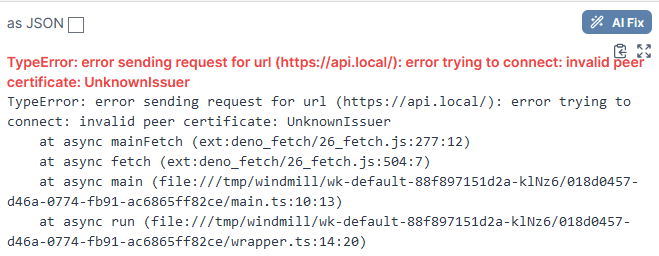

Our Deno and Python tests failed. They still do not trust the issuer of api.local’s certificate

Go & PowerShell

Go and PowerShell now both trust our internally signed certificate!

Go:

PowerShell:

Getting Deno’s trust

Deno is a bit of a security nut (which is a good thing!). Because of this, however, we need to take some extra steps to have it trust the CA certificates we just mounted. Luckily the Deno team knows about this and provides a solution.

We set an environment variable DENO_TLS_CA_STORE to tell Deno to use our system’s CA store. All we need to do is have this set inside of our workers. Again, we will modify the docker-compose.yml for this.

  windmill_worker:
    image: ${WM_IMAGE}
    # ...
    environment:
      - DATABASE_URL=${DATABASE_URL}
      - MODE=worker
      - WORKER_GROUP=default
      - DENO_TLS_CA_STORE=system,mozilla # Our new line!
      - INIT_SCRIPT=update-ca-certificates
    volumes:
      # ...
      - ./ca:/usr/local/share/ca-certificates:ro

We actually set it to the value system,mozilla instead of just system. This way Deno has its original store still just in case the Mozilla CA bundle in the worker’s system CA store ever goes haywire (probably due to me messing it up, really).

Getting Python’s (requests) trust

The requests library we use for Python uses the CA certificates from the certifi library (more info here). We can tell it, just like Deno, to use our systems CA store. However, we actually need to tell it where that store is located. (Refer back to the for how ca-certificates work on Debian)

windmill_worker:
  image: ${WM_IMAGE}
  # ...
  environment:
    - DATABASE_URL=${DATABASE_URL}
    - MODE=worker
    - WORKER_GROUP=default
    - REQUESTS_CA_BUNDLE=/etc/ssl/certs/ca-certificates.crt # Our new line!
    - DENO_TLS_CA_STORE=system,mozilla
    - INIT_SCRIPT=update-ca-certificates

But wait! Before you start testing, you should know if we run this now Python’s requests library does not actually see the new environment variable we just defined. Why? Since these environment variables can contain sensitive information, and we are running a lot of 3rd party code in our scripts, they are not passed into the script by default.

You might ask how is this any different than Deno? Well Deno actually uses its environment variable when building its runtime arguments, but that is technically outside of our script (before it). Python’s requests library, however, would need to access our new environment variable while our script is running. To do this, we need to explicitly allow specific environment variables to be passed through to our workers. We will add a WHITELIST_ENVS line to do this (more info here).

windmill_worker:
  image: ${WM_IMAGE}
  # ...
  environment:
    - DATABASE_URL=${DATABASE_URL}
    - MODE=worker
    - WORKER_GROUP=default
    - REQUESTS_CA_BUNDLE=/etc/ssl/certs/ca-certificates.crt
    - DENO_TLS_CA_STORE=system,mozilla
    - INIT_SCRIPT=update-ca-certificates
    - WHITELIST_ENVS=REQUESTS_CA_BUNDLE # Our new line!

Second Test

Our Deno and Python tests now both succeed!

Deno

Python

Scripts used for testing

Deno

export async function main() {
  const r = await fetch("https://api.local");
  return await r.json();
}

Go

package inner

import (
	"net/http"
)

func main() (bool, error) {
	resp, err := http.Get("https://api.local")
	if err != nil {
		return false, err
	}
	defer resp.Body.Close()

	if resp.StatusCode >= 200 && resp.StatusCode <= 299 {
		return true, nil
	}

	return false, nil
}

PowerShell

Invoke-RestMethod "https://api.local" | ConvertTo-Json -Compress

Python

import requests

def main():
    r = requests.get("https://api.local")

    return r.json()
